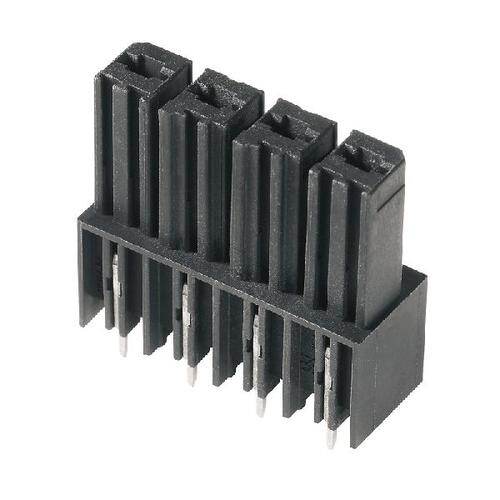

1928650000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
STANDARD: UL 94V-0 Terminal Block Socket
PDF
/
Buying Options
Total Price: USD $8.54
Unit Price: USD $8.536
≥1 USD $8.536
≥10 USD $7.3084
≥100 USD $6.974528
≥500 USD $6.269648
≥1000 USD $5.935776
≥3000 USD $5.379299
Inventory: 140
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Hole Diameter 1.3 mm
Current - IEC 41A
Header Orientation Vertical
Safety Approval UL; CSA
Number of Ways 5
Voltage - IEC 1kV
Current - UL 42A
Number of Decks 1
Contact Mating Finish Tin
Number of Levels 1
Contact Tail Length 0.138 3.50mm
Approval Agency CSA, cURus
Termination Style Solder
Current Rating 35A
Insulation Height 1.102 27.99mm
Ingress Protection IP20
Pitch 0.300 7.62mm
Additional Feature STANDARD: UL 94V-0
Voltage - Rated 300V
Number of Rows 1
Color Black
Number of Positions 5
Type Header, Blade Sockets
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series Omnimate BV
Packaging Bulk
Operating Temperature -50°C~130°C
Physical
Housing Material Polyamide (PA), Nylon, Glass Filled
Insulation Material Nylon
Mounting Type Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 12 Weeks
