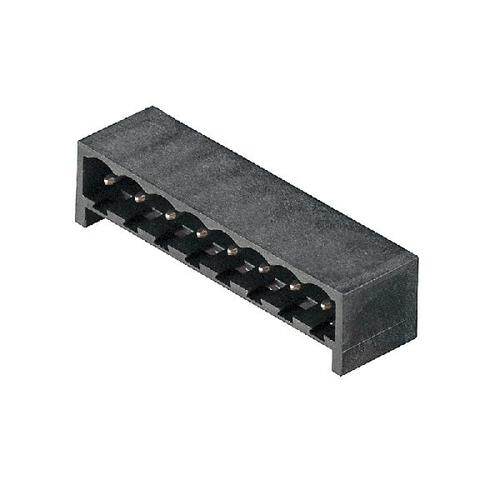

1877400000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Terminal Block Socket
PDF
/
Inventory: 8688
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Technical
Hole Diameter 1.4 mm
Current - IEC 27.5A
Header Orientation 90°, Right Angle, Under Board
Voltage - IEC 400V
Current - UL 18.5A
Voltage - UL 300V
Contact Mating Finish Tin
Number of Poles 5
Number of Levels 1
Contact Tail Length 0.126 3.20mm
Approval Agency CSA, UR
Termination Style Solder
Current Rating 19A
Insulation Height 0.433 11.00mm
Pitch 0.200 5.08mm
Voltage - Rated 300V
Gender Male
Color Black
Type Header, Male Pins, Shrouded (4 Side)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series Omnimate SL
Packaging Bulk
Operating Temperature -50°C~100°C
Physical
Housing Material Liquid Crystal Polymer (LCP), Glass Filled
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 12 Weeks
