1877010000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

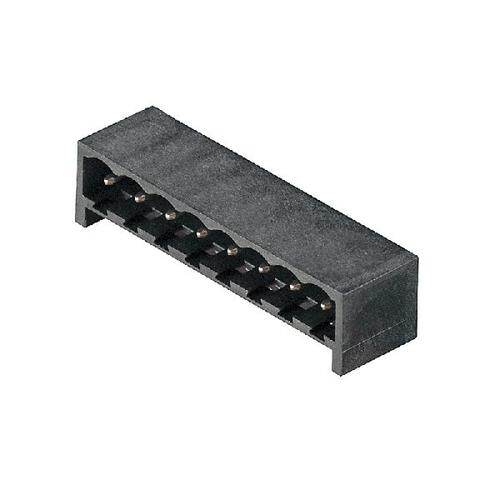

Terminal Block Plug
PDF
/
Inventory: 7523
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP), Glass Filled
Technical
Operating Temperature -50°C~100°C
Packaging Bulk
Series Omnimate SL
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Male Pins, Shrouded (4 Side)
Color Black
Gender Male
Voltage - Rated 300V
Pitch 0.200 5.08mm
Insulation Height 0.433 11.00mm
Current Rating 19A
Termination Style Solder
Approval Agency CSA, UR
Contact Tail Length 0.059 1.50mm
Number of Levels 1
Number of Poles 3
Contact Mating Finish Tin
Voltage - UL 300V
Current - UL 18.5A
Voltage - IEC 400V
Header Orientation 90°, Right Angle, Under Board
Current - IEC 27.5A
Hole Diameter 1.4 mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
