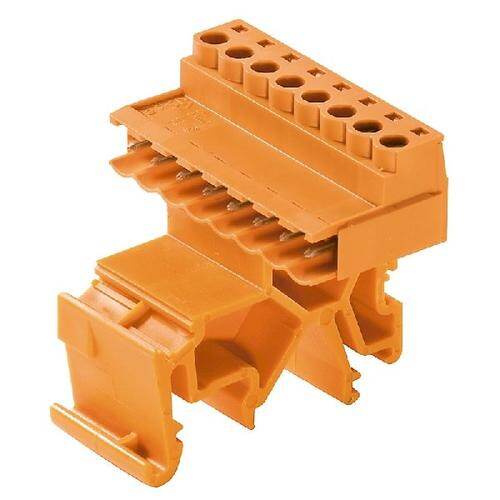

1846200000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
STANDARD: UL 94V-0 Terminal Block Plug
PDF
/
Inventory: 1371
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Mounting Type DIN Rail/Channel
Housing Material Polybutylene Terephthalate (PBT), Glass Filled
Technical
Packaging Bulk
Series Omnimate SLA
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Plug, Male Pins
Number of Positions 24
Color Orange
Number of Rows 1
Voltage - Rated 300V
Additional Feature STANDARD: UL 94V-0
HTS Code 8536.69.40.40
Pitch 0.200 5.08mm
Insulation Height 1.688 42.88mm
Current Rating 21.5A
Termination Style Screw - Clamping Yoke (Tension Sleeve)
Number of Levels 1
Contact Mating Finish Tin
Voltage - UL 300V
Number of Decks 1
Wire Gauge or Range - AWG 12-26 AWG
Current - UL 14A
Voltage - IEC 400V
Torque - Screw 0.4-0.5 Nm (3.5-4.4 Lb-In)
Number of Ways 24
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-2.5mm2
Stripping Length 7mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
