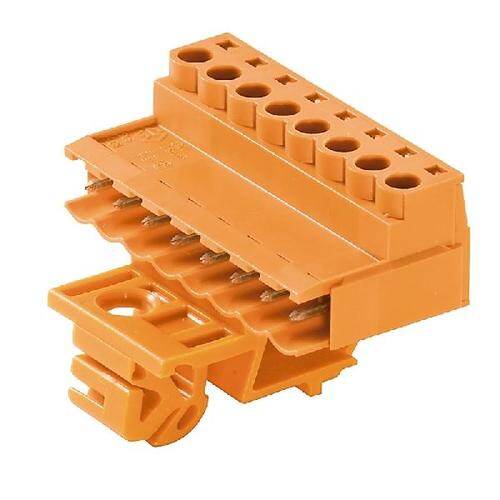

1846090000 image
Favorite
1846090000 image
Favorite

1846090000

Weidmüller
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description STANDARD: UL 94V-0 Terminal Block Header
PDF
/
Buying Options
Total Price: USD $12.75
Unit Price: USD $12.7512
≥1 USD $12.7512
≥10 USD $11.22176
≥100 USD $10.58405
≥500 USD $10.073888
≥1000 USD $9.882664
≥3000 USD $8.607456
Inventory: 59
Minimum: 1
-
+

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0

Technical

Stripping Length 7mm
Wire Strip Length 7mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 180°
Number of Ways 12
Torque - Screw 0.4-0.5 Nm (3.5-4.4 Lb-In)
Voltage - IEC 400V
Current - UL 14A
Wire Gauge or Range - AWG 12-26 AWG
Number of Decks 1
Contact Mating Finish Tin
Number of Levels 1
Number of Contacts 12
Termination Style Screw - Clamping Yoke (Tension Sleeve)
Current Rating 21.5A
Insulation Height 1.189 30.20mm
Orientation Right Angle
Pitch 0.200 5.08mm
HTS Code 8536.69.40.40
Additional Feature STANDARD: UL 94V-0
Voltage - Rated 300V
Gender Male
Number of Rows 1
Color Orange
Type Plug, Male Pins
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series Omnimate SLA
Published 2008
Packaging Bulk

Physical

Housing Material Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type DIN Rail/Channel
Mount Cable
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 11 Weeks
