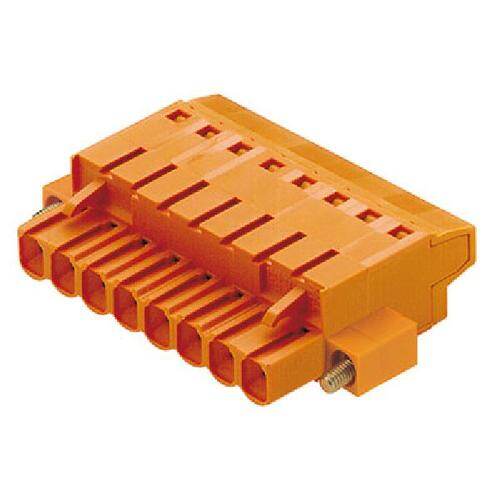

1844300000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
STANDARD: UL 94V-0 Terminal Block Plug
PDF
/
Inventory: 1541
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Mount Panel
Mounting Type Free Hanging (In-Line)
Housing Material Polybutylene Terephthalate (PBT), Glass Filled
Technical
Operating Temperature -50°C~100°C
Packaging Bulk
Series Omnimate BL
Feature Mating Flange, Retention Latches (Non-Wire Side)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Type Plug, Female Sockets
Color Black
Number of Rows 1
Gender Female
Additional Feature STANDARD: UL 94V-0
HTS Code 8536.69.40.40
Pitch 0.200 5.08mm
Orientation Straight
Insulation Height 0.480 12.20mm
Termination Style Screw - TOP Clamp
Number of Contacts 10
Number of Levels 1
Contact Mating Finish Tin
Voltage - UL 300V
Number of Decks 1
Wire Gauge or Range - AWG 14-26 AWG
Current - UL 17A
Voltage - IEC 400V
Torque - Screw 0.4-0.5 Nm (3.5-4.4 Lb-In)
Number of Ways 10
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-2.5mm2
Wire Strip Length 13mm
Current - IEC 27A
Screw Size M2.5
Wire Cross Section 2.5 mm2
Fastening Method PLUG IN
Rated Voltage 400V
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
