1843820000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

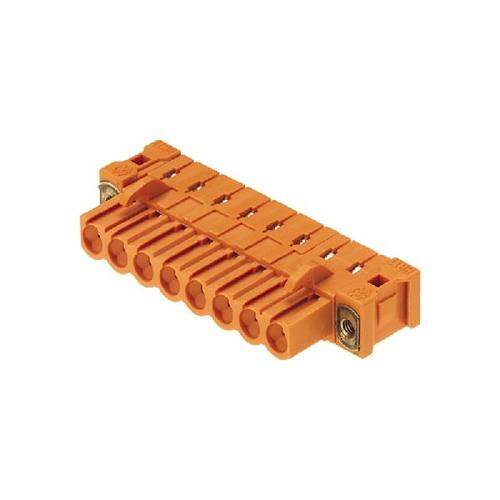

Terminal Block Header
PDF
/
Inventory: 6702
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT), Glass Filled
Technical
Operating Temperature -50°C~100°C
Packaging Bulk
Series Omnimate BL
Feature Mating Flange, Retention Latches
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Female Sockets
Color Orange
Gender Female
Voltage - Rated 300V
Pitch 0.200 5.08mm
Insulation Height 0.405 10.29mm
Current Rating 16A
Termination Style Solder
Contact Tail Length 0.126 3.20mm
Number of Levels 1
Number of Poles 9
Contact Mating Finish Tin
Voltage - UL 300V
Current - UL 15A
Voltage - IEC 400V
Header Orientation 90°, Right Angle
Current - IEC 23A
Hole Diameter 1.3 mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
