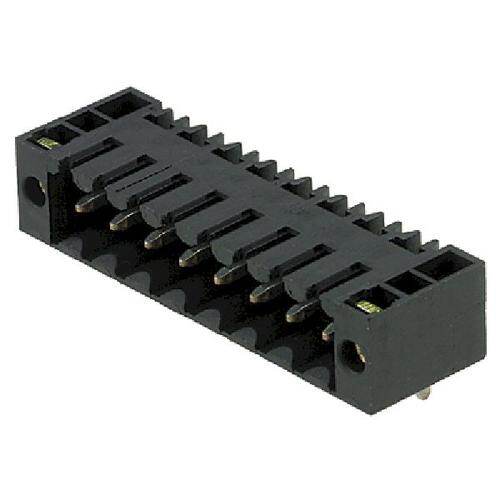

1842160000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Terminal Block Plug
PDF
/
Buying Options
Total Price: USD $5.23
Unit Price: USD $5.2272
≥1 USD $5.2272
≥10 USD $3.9864
≥100 USD $3.319272
≥500 USD $3.2472
≥1000 USD $2.994622
≥3000 USD $2.706
Inventory: 57
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Material Flammability Rating UL94 V-0
Technical
Hole Diameter 1.4 mm
Current - IEC 15A
Header Orientation 90°, Right Angle
Safety Approval UL; CSA
Number of Ways 10
Voltage - IEC 320V
Current - UL 10A
Number of Decks 1
Voltage - UL 300V
Contact Mating Finish Tin
Number of Poles 10
Number of Levels 1
Contact Tail Length 0.126 3.20mm
Approval Agency CSA, UR
Termination Style Solder
Current Rating 13A
Insulation Height 0.293 7.44mm
Ingress Protection IP10
Pitch 0.138 3.50mm
HTS Code 8536.69.40.40
Voltage - Rated 300V
Gender Male
Number of Rows 1
Color Black
Type Header, Male Pins, Shrouded (4 Side)
Connector Type PCB, Terminal Block
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Mating and Mounting Flange
Series Omnimate SL
Published 2011
Packaging Bulk
Operating Temperature -50°C~100°C
Physical
Housing Material Liquid Crystal Polymer (LCP), Glass Filled
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 11 Weeks
