1841920000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

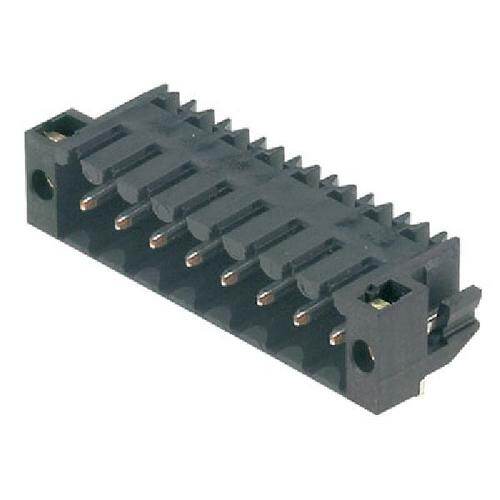

WEIDMULLER 1841920000 Terminal Block, Header, 3.5 mm, 8 Ways, 15 A, 320 V, Through Hole Right Angle
PDF
/
Inventory: 3033
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Material Flammability Rating UL94 V-0
Technical
Hole Diameter 1.4 mm
Current - IEC 15A
Header Orientation 90°, Right Angle
Safety Approval UL; CSA
Number of Ways 8
Voltage - IEC 320V
Number of Decks 1
Contact Mating Finish Tin
Number of Poles 8
Number of Levels 1
Max Current Rating 10A
Contact Tail Length 0.126 3.20mm
Approval Agency CSA, UR
Termination Style Solder
Current Rating 13A
Insulation Height 0.293 7.44mm
Ingress Protection IP10
Orientation Right Angle
Pitch 0.138 3.50mm
Additional Feature STANDARD: UL 94V-0
Voltage - Rated 300V
Gender Male
Number of Rows 1
Color Black
Number of Positions 8
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Mating Flange, Solder Retention
Series Omnimate SL
Published 2011
Packaging Bulk
Operating Temperature -50°C~100°C
Physical
Housing Material Liquid Crystal Polymer (LCP), Glass Filled
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 12 Weeks
