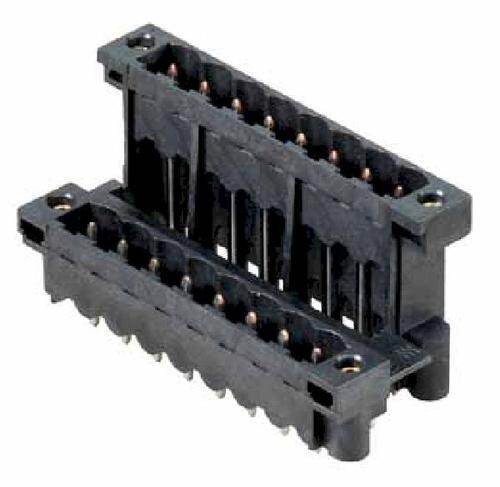

1829010000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Terminal Block Plug
PDF
/
Inventory: 3466
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole
Shell Material GLASS FILLED LIQUID CRYSTAL POLYMER
Housing Material Liquid Crystal Polymer (LCP), Glass Filled
Technical
Operating Temperature 100°C
Packaging Bulk
Series Omnimate SL
JESD-609 Code e3
Feature Mating and Mounting Flange, Solder Retention
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 4
Color Black
Gender Male
Voltage - Rated 300V
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.200 5.08mm
Ingress Protection IP20
Insulation Height 1.030 26.16mm
Current Rating 13A
Termination Style Solder
Approval Agency CSA, UR
Number of Contacts 8
Empty Shell NO
Contact Tail Length 0.126 3.20mm
Contact Mating Finish Tin
Current - UL 10A
Voltage - IEC 400V
Positions Per Level 2
Header Orientation Vertical
Current - IEC 15A
Hole Diameter 1.4 mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
