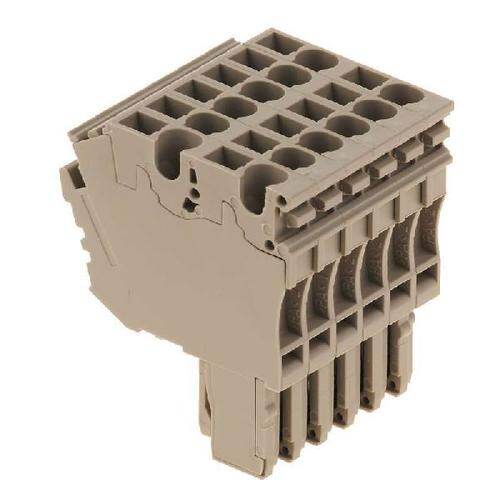

1815780000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK PLUG 6/12POS STR
PDF
/
Inventory: 2701
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Cable
Mounting Type Free Hanging (In-Line)
Housing Material Thermoplastic, Wemid
Technical
Operating Temperature -50°C~120°C
Packaging Bulk
Published 2012
Series Z
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Plug, Female Sockets
Number of Positions 6 (Mate), 12 (Input)
Color Beige
Voltage - Rated 500V
Orientation Straight
Current Rating 24A
Termination Style Screwless - Spring Cage, Tension Clamp
Approval Agency CE, IEC, cURus
Number of Contacts 3
Number of Circuits 1
Number of Levels 1 (Mate), 2 (Input)
Voltage - UL 600V
Wire Gauge or Range - AWG 12-26 AWG
Current - UL 5A
Voltage - IEC 690V
Positions Per Level 6 (Mate), 12 (Input)
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.5-2.5mm2
Stripping Length 10mm
Dimensions
Height 41mm
Length 36.5mm
Width 30.6mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
