1813580000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

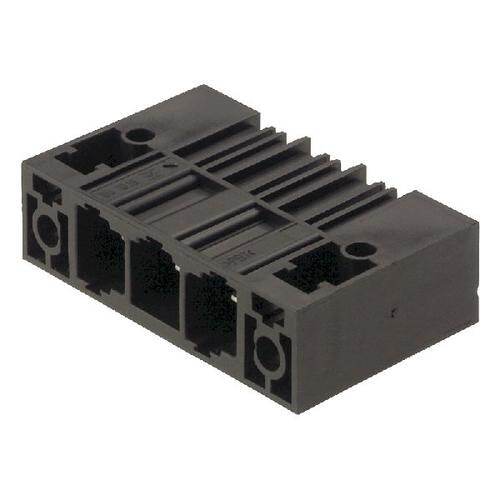

WEIDMULLER 1813580000 Wire-To-Board Connector, Flange, SU 10.16HP Series, 3 Contacts, Header, 10.16 mm, Through Hole
PDF
/
Buying Options
Total Price: USD $7.73
Unit Price: USD $7.7264
≥1 USD $7.7264
≥10 USD $6.09136
≥100 USD $5.79407
≥500 USD $5.2591
≥1000 USD $5.051121
≥3000 USD $4.456883
Inventory: 129
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole
Shell Material GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Housing Material Polybutylene Terephthalate (PBT), Glass Filled
Technical
Operating Temperature -50°C~120°C
Packaging Bulk
Published 2008
Series Omnimate SU
JESD-609 Code e4
Feature Mating and Mounting Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Blade Pins, Shrouded (4 Side)
Color Black
Gender Male
Voltage - Rated 300V
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.400 10.16mm
Total Number of Contacts 3
Orientation Right Angle
Ingress Protection IP20
Insulation Height 0.535 13.60mm
Current Rating 54A
Termination Style Solder
Approval Agency cURus
UL Flammability Code 94V-0
Empty Shell NO
Contact Tail Length 0.138 3.50mm
Max Current Rating 54A
Number of Levels 1
Number of Poles 3
Contact Mating Finish Silver
Current - UL 60A
Voltage - IEC 1kV
Header Orientation 90°, Right Angle
Current - IEC 78.3A
Hole Diameter 1.6 mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
