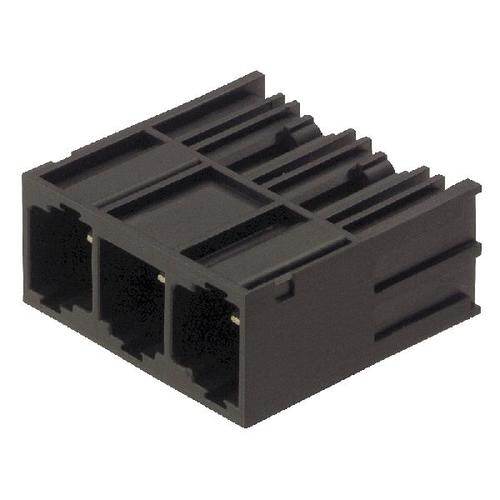

1813550000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Terminal Block Plug
PDF
/
Inventory: 7881
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole
Shell Material GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Housing Material Polybutylene Terephthalate (PBT), Glass Filled
Technical
Operating Temperature -50°C~120°C
Packaging Bulk
Series Omnimate SU
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Blade Pins, Shrouded (4 Side)
Color Black
Gender Male
Voltage - Rated 300V
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.400 10.16mm
Total Number of Contacts 8
Ingress Protection IP20
Insulation Height 0.535 13.60mm
Current Rating 54A
Termination Style Solder
Approval Agency cURus
UL Flammability Code 94V-0
Empty Shell NO
Contact Tail Length 0.138 3.50mm
Number of Levels 1
Number of Poles 8
Contact Mating Finish Silver
Voltage - UL 300V
Current - UL 60A
Voltage - IEC 1kV
Header Orientation 90°, Right Angle, Under Board
Current - IEC 78.3A
Hole Diameter 1.6 mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
