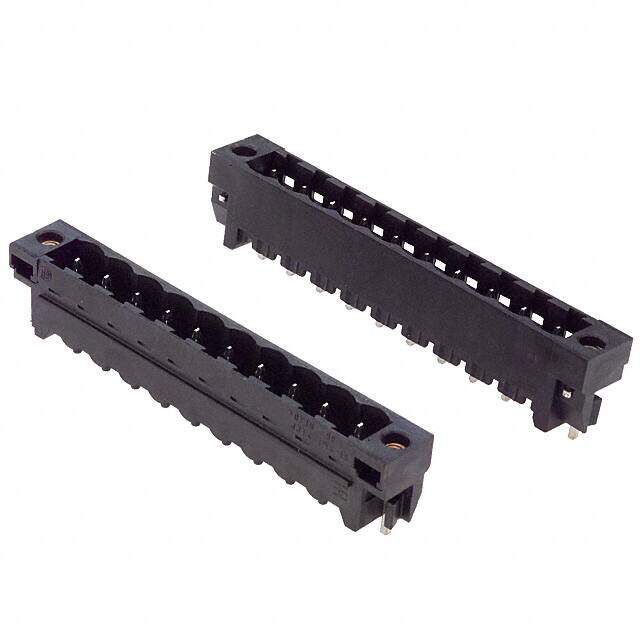

1776442001
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 10POS VERT 5.08MM
PDF
/
Inventory: 2216
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Width 8.5mm
Length 60.6mm
Technical
Hole Diameter 1.5 mm
Current - IEC 27.5A
Header Orientation Vertical
Voltage - IEC 400V
Current - UL 18.5A
Contact Mating Finish Tin
Number of Poles 10
Current 10A
Number of Levels 1
Max Current Rating 15A
Contact Tail Length 0.059 1.50mm
Voltage 300V
UL Flammability Code 94V-0
Approval Agency CSA, UR
Termination Style Solder
Current Rating 15A
Insulation Height 0.472 12.00mm
Depth 8.5mm
Total Number of Contacts 10
Pitch 0.200 5.08mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Additional Feature PANEL MOUNTABLE
Voltage - Rated 300V
Gender Male
Number of Rows 1
Color Black
Type Header, Male Pins, Shrouded (4 Side)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating Flange, Solder Retention
JESD-609 Code e3
Series Omnimate SL
Published 2008
Packaging Bulk
Operating Temperature -50°C~100°C
Physical
Housing Material Liquid Crystal Polymer (LCP), Glass Filled
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 12 Weeks
