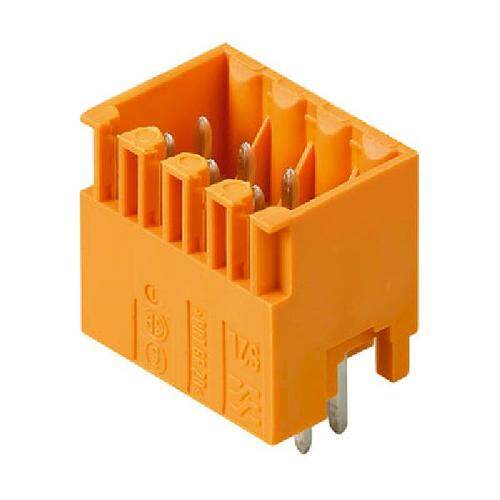

1756340000 image
Favorite
1756340000 image
Favorite

1756340000

Weidmüller
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK HDR 10POS VERT 3.5MM
PDF
/
Inventory: 2546
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0

Dimensions

Height 14.2mm

Technical

Current - IEC 10A
Header Orientation Vertical
Positions Per Level 5
Voltage - IEC 250V
Contact Mating Finish Gold
Current 7A
Number of Levels 2
Contact Tail Length 0.138 3.50mm
Voltage 150V
Insulation Resistance 1MOhm
Termination Style Solder
Insulation Height 0.559 14.20mm
Ingress Protection IP10
Total Number of Contacts 10
Pitch 0.138 3.50mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Number of Rows 2
Color Orange
Number of Positions 10
Type Header, Male Pins, Shrouded (4 Side)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series Omnimate S2L
Published 2009
Packaging Bulk
Operating Temperature -50°C~100°C

Physical

Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 14 Weeks
