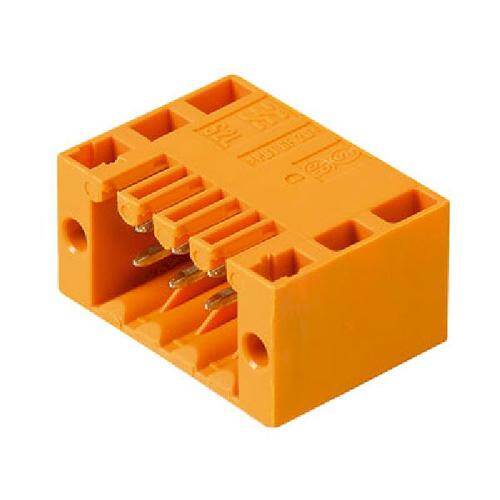

1756160000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 6POS 90DEG 3.5MM
PDF
/
Inventory: 1113
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Technical
Operating Temperature -50°C~100°C
Packaging Bulk
Published 2009
Series Omnimate S2L
JESD-609 Code e4
Feature Mating and Mounting Flange
Pbfree Code yes
Part Status Active
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 6
Color Black
Number of Rows 2
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.138 3.50mm
Total Number of Contacts 6
Ingress Protection IP10
Insulation Height 0.413 10.49mm
Termination Style Solder
Insulation Resistance 1MOhm
Voltage 150V
Contact Tail Length 0.138 3.50mm
Number of Levels 2
Current 7A
Contact Mating Finish Gold
Voltage - IEC 250V
Positions Per Level 3
Header Orientation 90°, Right Angle
Current - IEC 10A
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
