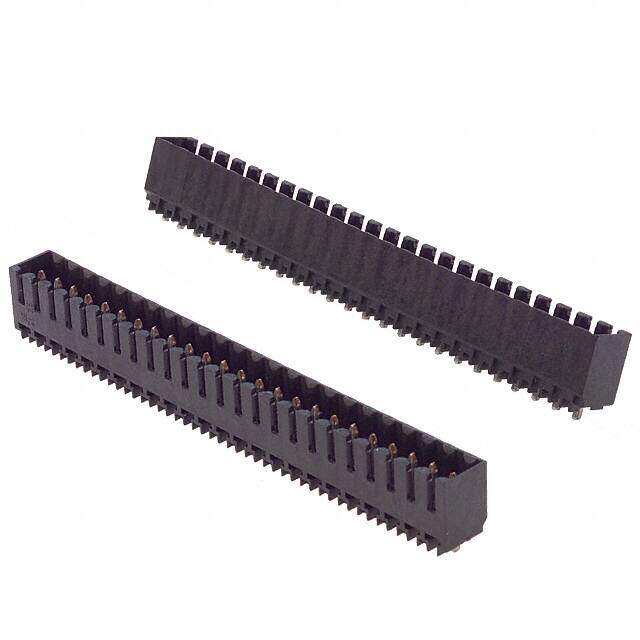

1753202001
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 24POS VERT 3.5MM
PDF
/
Inventory: 2658
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Voltage 300V
Contact Tail Length 0.059 1.50mm
Number of Levels 1
Current 10A
Number of Poles 24
Contact Mating Finish Tin
Voltage - IEC 320V
Header Orientation Vertical
Current - IEC 15A
Hole Diameter 1.4 mm
Insulation Resistance 1MOhm
UL Flammability Code 94V-0
Approval Agency CSA, UR
Termination Style Solder
Current Rating 13A
Insulation Height 0.435 11.05mm
Ingress Protection IP10
Total Number of Contacts 24
Pitch 0.138 3.50mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Additional Feature HIGH DENSITY
Voltage - Rated 300V
Gender Male
Number of Rows 1
Color Black
Type Header, Male Pins, Shrouded (4 Side)
Connector Type PCB, Terminal Block
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series Omnimate SL
Published 2008
Packaging Bulk
Operating Temperature -50°C~100°C
Dimensions
Height 11.1mm
Length 85.4mm
Width 7.5mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
Physical
Housing Material Liquid Crystal Polymer (LCP), Glass Filled
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 12 Weeks
