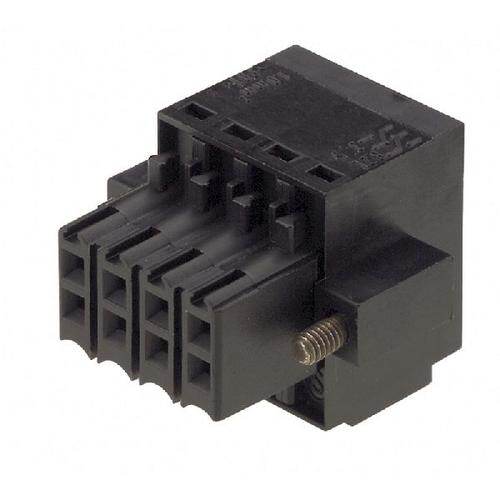

1748230000 image
Favorite
1748230000 image
Favorite

1748230000

Weidmüller
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Conn Terminal Block SKT 18 POS 3.5mm Crimp ST Panel Mount 10A Box
PDF
/
Inventory: 994
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0

Dimensions

Width 15.6mm
Length 38.5mm

Technical

Number of Positions Per Level 9
Current - IEC 10.3A
Wire Strip Length 7mm
Wire Gauge or Range - mm2 0.2-1mm2
Plug Wire Entry 180°
Positions Per Level 9
Voltage - IEC 250V
Wire Gauge or Range - AWG 16-28 AWG
Contact Mating Finish Tin
Wire Gauge (Min) 18 AWG
Wire Gauge (Max) 28 AWG
Current 10A
Number of Levels 2
Max Current Rating 10A
Max Supply Voltage 150V
Voltage 150V
Insulation Resistance 1MOhm
Termination Style Screwless - Spring Cage, Tension Clamp
Insulation Height 0.618 15.70mm
Depth 20.6mm
Ingress Protection IP20
Orientation Straight
Total Number of Contacts 18
Pitch 0.138 3.50mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Number of Rows 2
Color Black
Number of Positions 18
Type Plug, Female Sockets
Termination Crimp
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Feature Mating Flange
JESD-609 Code e3
Series Omnimate B2L
Published 2009
Packaging Bulk
Operating Temperature -50°C~100°C

Physical

Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Free Hanging (In-Line)
Mount Free Hanging, Panel
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 12 Weeks
