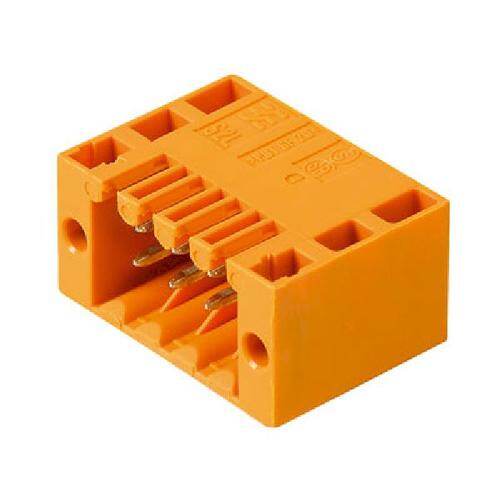

1728690000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 18POS 90DEG 3.5MM
PDF
/
Buying Options
Total Price: USD $7.22
Unit Price: USD $7.2248
≥1 USD $7.2248
≥10 USD $5.69712
≥100 USD $4.918654
≥500 USD $4.72413
≥1000 USD $4.168393
≥3000 USD $3.89048
Inventory: 127
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Length 70mm
Technical
Hole Diameter 1.3 mm
Header Orientation 90°, Right Angle
Positions Per Level 9
Voltage - IEC 250V
Contact Mating Finish Tin
Number of Poles 18
Current 7A
Number of Levels 2
Max Current Rating 10A
Contact Tail Length 0.138 3.50mm
Voltage 150V
Insulation Resistance 1MOhm
Approval Agency CSA, UR
Termination Style Solder
Current Rating 10A
Insulation Height 0.413 10.49mm
Depth 14.2mm
Ingress Protection IP10
Orientation Right Angle
Total Number of Contacts 18
Pitch 0.138 3.50mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Voltage - Rated 150V
Number of Rows 1
Color Black
Type Header, Male Pins, Shrouded (4 Side)
Part Status Active
Pbfree Code yes
Feature Mating and Mounting Flange
JESD-609 Code e3
Series Omnimate S2L
Published 2009
Packaging Bulk
Operating Temperature -50°C~100°C
Physical
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 6 Weeks
