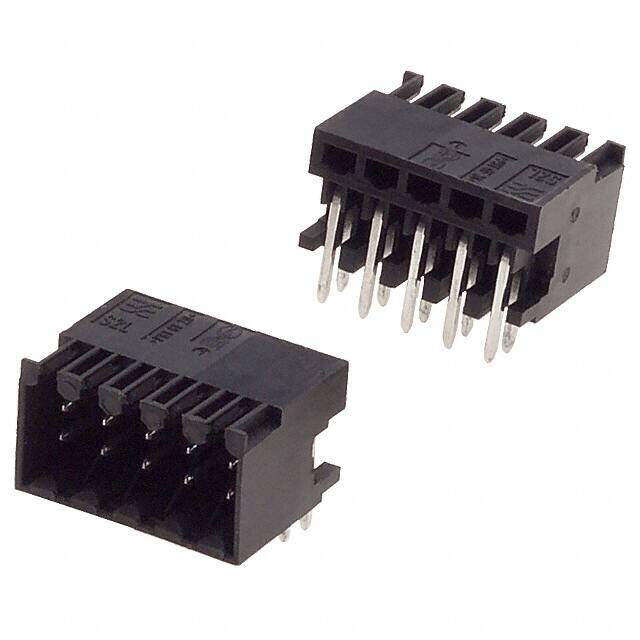

1728010000  image
Favorite
1728010000  image
Favorite

1728010000

Weidmüller
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK HDR 10POS 90DEG 3.5MM
PDF
/
Buying Options
Total Price: USD $3.84
Unit Price: USD $3.8368
≥1 USD $3.8368
≥10 USD $2.9216
≥100 USD $2.736096
≥500 USD $2.3793
≥1000 USD $2.194227
≥3000 USD $1.982737
Inventory: 915
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0

Dimensions

Length 36.4mm

Technical

Hole Diameter 1.3 mm
Header Orientation 90°, Right Angle
Positions Per Level 5
Voltage - IEC 250V
Contact Mating Finish Tin
Number of Poles 10
Current 7A
Number of Levels 2
Max Current Rating 10A
Contact Tail Length 0.138 3.50mm
Voltage 150V
Insulation Resistance 1MOhm
Approval Agency CSA, UR
Termination Style Solder
Current Rating 10A
Insulation Height 0.410 10.41mm
Depth 14.2mm
Ingress Protection IP10
Orientation Right Angle
Total Number of Contacts 10
Pitch 0.138 3.50mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Voltage - Rated 150V
Gender Male
Number of Rows 1
Color Black
Type Header, Male Pins, Shrouded (4 Side)
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series Omnimate S2L
Published 2002
Packaging Bulk
Operating Temperature -50°C~100°C

Physical

Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 12 Weeks
