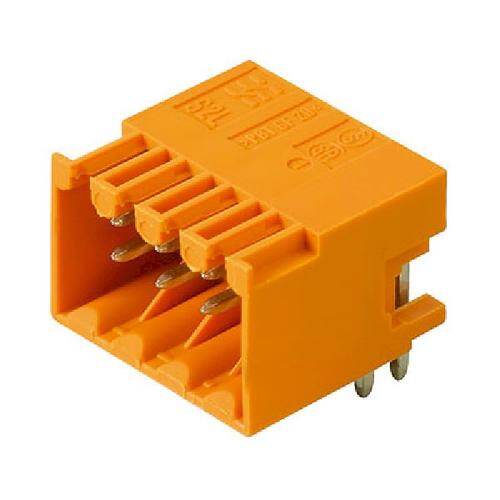

1727930000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 26POS 90DEG 3.5MM
PDF
/
Inventory: 9874
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Technical
Operating Temperature -50°C~100°C
Packaging Bulk
Published 2009
Series Omnimate S2L
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Type Header, Male Pins, Shrouded (4 Side)
Color Orange
Number of Rows 1
Voltage - Rated 150V
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.138 3.50mm
Total Number of Contacts 26
Orientation Right Angle
Ingress Protection IP10
Depth 14.2mm
Insulation Height 0.410 10.41mm
Current Rating 10A
Termination Style Solder
Approval Agency CSA, UR
Insulation Resistance 1MOhm
Voltage 150V
Contact Tail Length 0.138 3.50mm
Max Current Rating 10A
Number of Levels 2
Current 7A
Number of Poles 26
Contact Mating Finish Tin
Voltage - IEC 250V
Positions Per Level 13
Header Orientation 90°, Right Angle
Hole Diameter 1.3 mm
Dimensions
Length 92.4mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
