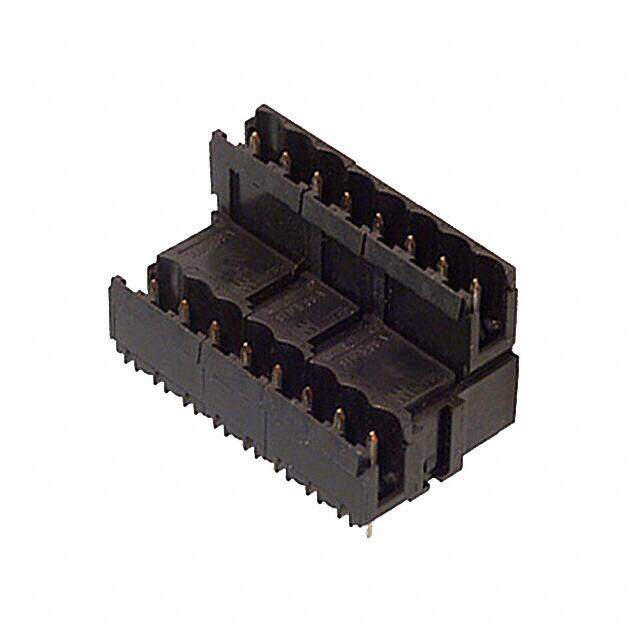

1727030000 image
Favorite
1727030000 image
Favorite

1727030000

Weidmüller
RoHS
/
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Terminal Block Socket
PDF
/
Inventory: 5472
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0

Dimensions

Width 26.2mm
Height 22.2mm

Technical

Current - IEC 7A
Header Orientation Vertical
Positions Per Level 8
Voltage - IEC 250V
Contact Mating Finish Tin
Current 15A
Number of Levels 2
Contact Tail Length 0.177 4.50mm
Voltage 300V
Insulation Resistance 1MOhm
UL Flammability Code 94V-0
Termination Style Solder
Current Rating 15A
Insulation Height 0.872 22.15mm
Total Number of Contacts 16
Pitch 0.200 5.08mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Number of Rows 2
Color Black
Number of Positions 16
Type Header, Male Pins, Shrouded (2 Side)
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Pbfree Code yes
Series Omnimate SL
Packaging Bulk
Operating Temperature -20°C~100°C

Physical

Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 11 Weeks
