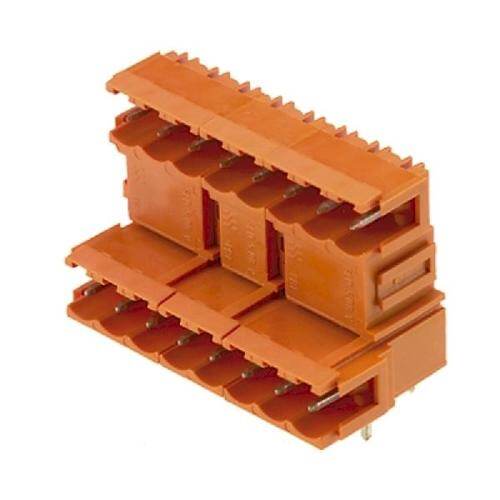

1726460000 image
Favorite
1726460000 image
Favorite

1726460000

Weidmüller
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Terminal Block Socket
PDF
/
Inventory: 3456
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0

Dimensions

Width 22.2mm
Length 106mm
Height 26.2mm

Technical

Hole Diameter 1.3 mm
Current - IEC 17A
Header Orientation 90°, Right Angle
Positions Per Level 20
Voltage - IEC 400V
Contact Mating Finish Tin
Number of Poles 40
Current 10A
Number of Levels 2
Contact Tail Length 0.126 3.20mm
Voltage 300V
UL Flammability Code 94V-0
Approval Agency CSA, UR
Termination Style Solder
Current Rating 17A
Insulation Height 1.032 26.21mm
Total Number of Contacts 40
Pitch 0.200 5.08mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Voltage - Rated 300V
Number of Rows 2
Color Orange
Type Header, Male Pins, Shrouded (2 Side)
Part Status Active
Pbfree Code yes
Series Omnimate SL
Packaging Bulk
Operating Temperature -50°C~100°C

Physical

Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 12 Weeks
