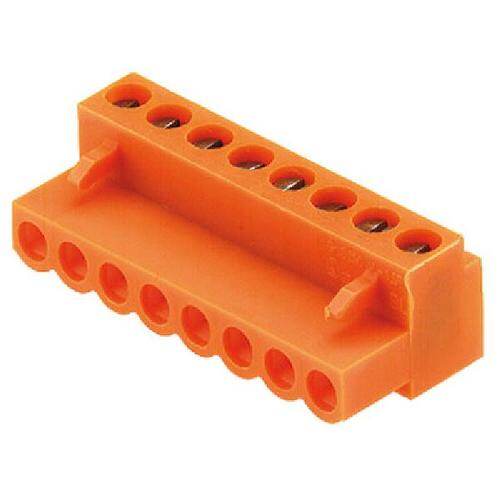

1723850000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Terminal Block Plug
PDF
/
Inventory: 8213
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Material Copper Alloy
Mount Cable
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Technical
Operating Temperature -50°C~100°C
Packaging Bulk
Series Omnimate BL
Feature Retention Latches (Non-Wire Side)
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Type Plug, Female Sockets
Color Green
Number of Rows 1
Gender Female
Pitch 0.200 5.08mm
Orientation Right Angle
Insulation Height 0.492 12.50mm
Termination Style Screw - Leaf Spring, Wire Guard
Number of Contacts 4
Number of Levels 1
Contact Mating Finish Tin
Voltage - UL 300V
Number of Decks 1
Wire Gauge or Range - AWG 14-26 AWG
Current - UL 10A
Voltage - IEC 400V
Torque - Screw 0.4-0.5 Nm (3.5-4.4 Lb-In)
Number of Ways 4
Safety Approval UL; CSA
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-1.5mm2
Wire Strip Length 6mm
Current - IEC 14A
Screw Size M2.5
Wire Cross Section 2.08 mm2
Fastening Method PLUG IN
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
