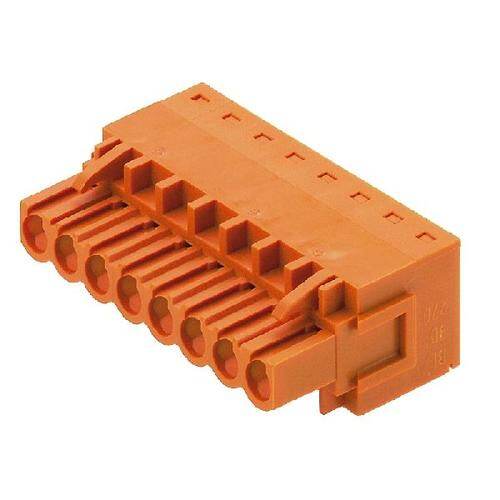

1672750000 image
Favorite
1672750000 image
Favorite

1672750000

Weidmüller
RoHS
/
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK PLUG 14POS 5.08MM
PDF
/
Inventory: 7937
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0

Dimensions

Width 14.3mm
Length 73.1mm
Height 25.1mm

Technical

Current - IEC 16.5A
Wire Strip Length 10mm
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 270°
Voltage - IEC 400V
Wire Gauge or Range - AWG 12-26 AWG
Contact Mating Finish Tin
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 26 AWG
Current 10A
Number of Levels 1
Voltage 300V
UL Flammability Code 94V-0
Number of Contacts 14
Termination Style Screwless - Spring Cage, Tension Clamp
Insulation Height 0.563 14.30mm
Orientation Right Angle
Pitch 0.200 5.08mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Number of Rows 1
Color Black
Number of Positions 14
Type Plug, Female Sockets
Termination Screwless
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Pbfree Code yes
Feature Retention Latches (Non-Wire Side)
JESD-609 Code e3
Series Omnimate BL
Published 2009
Packaging Bulk
Operating Temperature -50°C~100°C

Physical

Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 11 Weeks
