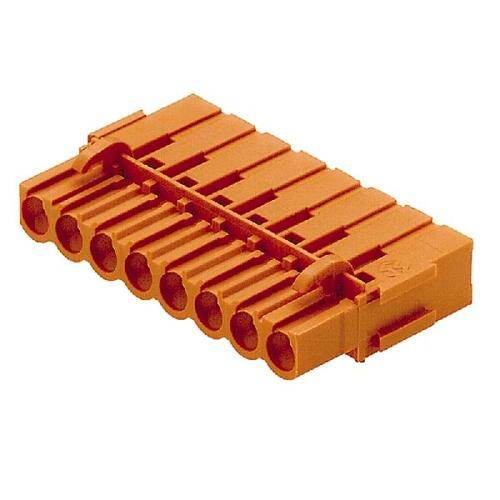

1649500000 image
Favorite
1649500000 image
Favorite

1649500000

Weidmüller
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description TERM BLOCK PLUG 15POS STR 5.08MM
PDF
/
Inventory: 6051
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0

Dimensions

Width 24.5mm
Length 78.2mm
Height 10.1mm

Technical

Stripping Length 5mm
Current - IEC 21A
Plug Wire Entry 180°
Voltage - IEC 400V
Wire Gauge or Range - AWG 14-26 AWG
Wire Gauge (Min) 14 AWG
Wire Gauge (Max) 26 AWG
Current 10A
Number of Levels 1
Voltage 300V
UL Flammability Code 94V-0
Number of Contacts 15
Approval Agency CSA, UR
Termination Style Crimp
Current Rating 21A
Insulation Height 0.397 10.08mm
Orientation Straight
Pitch 0.200 5.08mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating TIN
Voltage - Rated 300V
Number of Rows 1
Color Orange
Type Plug Housing for Female Sockets
Part Status Active
Pbfree Code yes
Feature Retention Latches (Non-Wire Side)
JESD-609 Code e3
Series Omnimate BL
Published 2009
Packaging Bulk
Operating Temperature -50°C~100°C

Physical

Housing Material Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Tin
Contact Material COPPER ALLOY

Supply Chain

Factory Lead Time 12 Weeks
