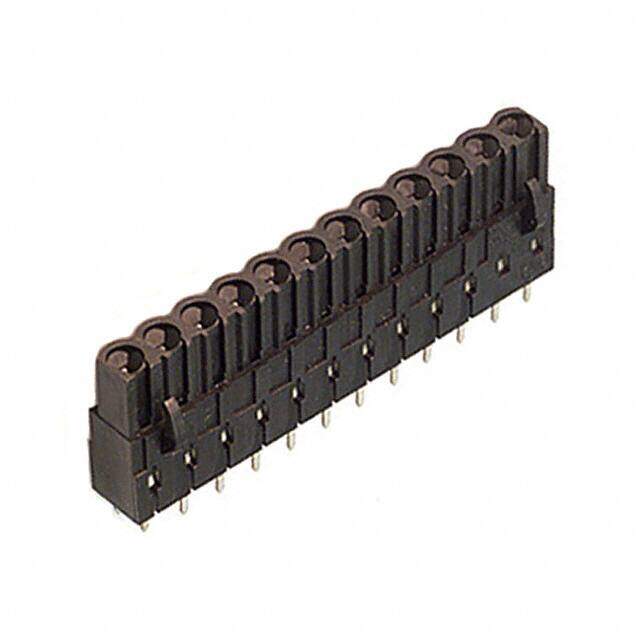

1646350000 image
Favorite
1646350000 image
Favorite

1646350000

Weidmüller
RoHS
/
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description STAGGERED CONFIGURATION Terminal Block Plug
PDF
/
Inventory: 945
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0

Dimensions

Width 10.3mm
Height 20.3mm

Technical

Number of Positions Per Level 12
Current - IEC 12A
Header Orientation Vertical
Voltage - IEC 250V
Voltage - UL 300V
Contact Mating Finish Tin
Current 15A
Number of Levels 1
Contact Tail Length 0.177 4.50mm
Voltage 300V
Insulation Resistance 1MOhm
UL Flammability Code 94V-0
Termination Style Solder
Current Rating 15A
Insulation Height 0.797 20.24mm
Total Number of Contacts 12
Pitch 0.200 5.08mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Additional Feature STAGGERED CONFIGURATION
Gender Female
Number of Rows 1
Color Black
Type Header, Female Sockets
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Pbfree Code yes
Feature Retention Latches
Series Omnimate BL
Published 2002
Packaging Bulk
Operating Temperature -20°C~100°C

Physical

Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper Alloy
