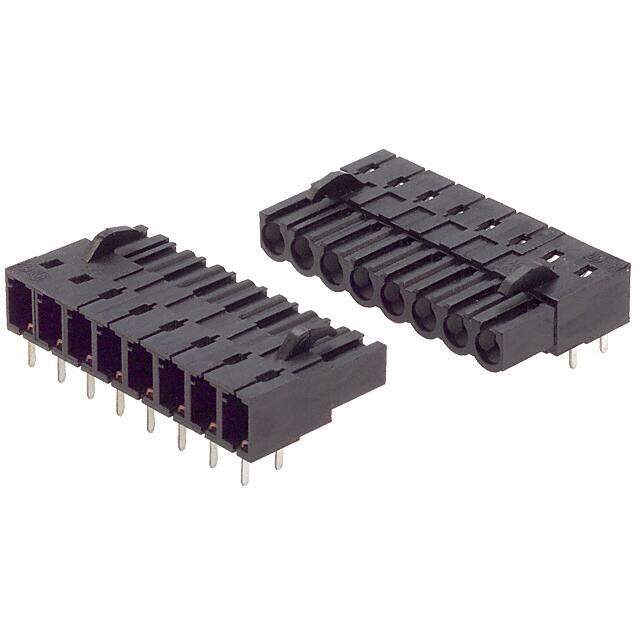

1646090000
RoHS
/
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Conn Board to Board SKT 8 POS 5.08mm Solder RA Thru-Hole
PDF
/
Inventory: 3543
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Width 20.3mm
Technical
Number of Positions Per Level 8
Current - IEC 12A
Header Orientation 90°, Right Angle
Voltage - IEC 250V
Contact Mating Finish Tin
Current 15A
Number of Levels 1
Max Current Rating 15A
Contact Tail Length 0.177 4.50mm
Voltage 300V
Insulation Resistance 1MOhm
UL Flammability Code 94V-0
Termination Style Solder
Current Rating 15A
Insulation Height 0.406 10.31mm
Depth 20.25mm
Orientation Right Angle
Total Number of Contacts 8
Pitch 0.200 5.08mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Additional Feature STAGGERED CONFIGURATION
Gender Female
Number of Rows 1
Color Black
Type Header, Female Sockets
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Pbfree Code yes
Feature Retention Latches
Series Omnimate BL
Published 2006
Packaging Bulk
Operating Temperature -20°C~100°C
Physical
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 3 Weeks
