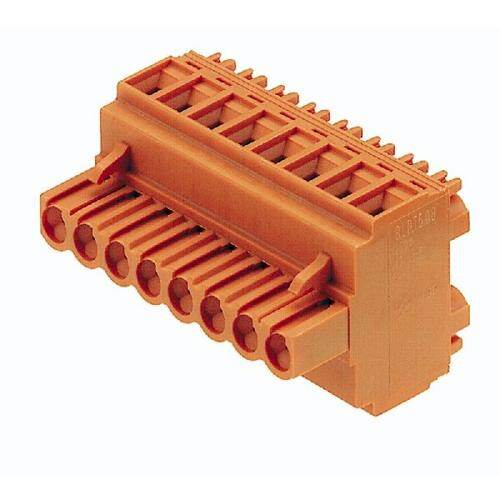

1644770000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Conn Terminal Block SKT 6 POS 5.08mm Screw ST Cable Mount 15A Box
PDF
/
Inventory: 4408
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polybutylene Terephthalate (PBT)
Technical
Operating Temperature -50°C~100°C
Packaging Bulk
Published 2009
Series Omnimate BL
JESD-609 Code e3
Feature Retention Latches (Non-Wire Side)
Pbfree Code yes
Part Status Active
Termination Screw
Type Plug, Female Sockets
Number of Positions 6 (Mate), 12 (Input)
Color Orange
Number of Rows 1
Voltage - Rated 300V
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.200 5.08mm
Total Number of Contacts 6
Orientation Straight
Ingress Protection IP20
Depth 26.8mm
Insulation Height 0.917 23.29mm
Current Rating 14A
Termination Style Screw - Clamping Yoke (Tension Sleeve)
Approval Agency CSA, UR
UL Flammability Code 94V-0
Voltage 300V
Number of Circuits 3
Max Supply Voltage 300V
Max Current Rating 15A
Number of Levels 1 (Mate), 2 (Input)
Current 10A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 12 AWG
Number of Poles 6
Contact Mating Finish Tin
Wire Gauge or Range - AWG 12-26 AWG
Voltage - IEC 400V
Torque - Screw 0.4-0.5 Nm (3.5-4.4 Lb-In)
Plug Wire Entry 90° and 270°
Stripping Length 7mm
Screw Size M2.5
Current - IEC 14A
Wire Gauge or Range - mm2 0.2-2.5mm2
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Width 23.3mm
Length 30.48mm
