1643370000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

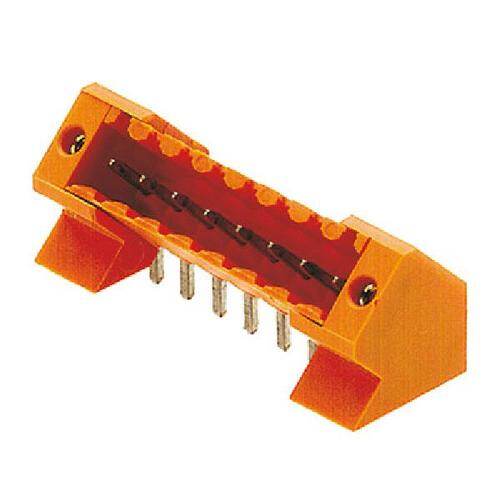

TERM BLOCK HDR 6POS 135DEG 3.5MM
PDF
/
Inventory: 6811
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Technical
Operating Temperature -50°C~100°C
Packaging Bulk
Published 2008
Series Omnimate SL
JESD-609 Code e3
Feature Mating Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Male Pins, Shrouded (4 Side)
Color Orange
Number of Rows 1
Voltage - Rated 300V
Additional Feature HIGH DENSITY
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.138 3.50mm
Total Number of Contacts 6
Ingress Protection IP10
Insulation Height 0.513 13.03mm
Current Rating 13A
Termination Style Solder
Approval Agency CSA, UR
UL Flammability Code 94V-0
Insulation Resistance 1MOhm
Voltage 300V
Contact Tail Length 0.126 3.20mm
Number of Levels 1
Current 10A
Number of Poles 6
Contact Mating Finish Tin
Voltage - IEC 320V
Header Orientation 135°
Current - IEC 15A
Hole Diameter 1.3 mm
Dimensions
Height 13mm
Length 36.7mm
Width 13.2mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
