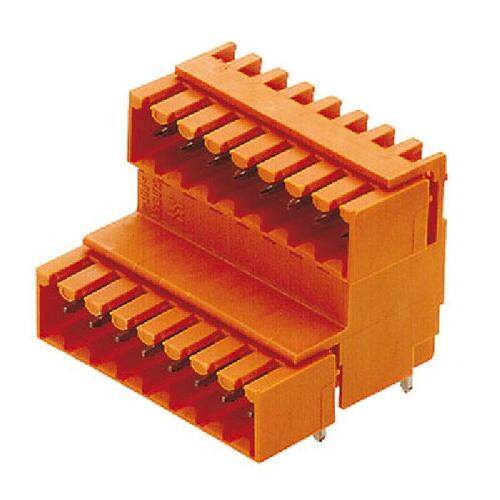

1642320000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 36POS 90DEG 3.5MM
PDF
/
Inventory: 1918
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Technical
Operating Temperature -50°C~100°C
Packaging Bulk
Published 2008
Series Omnimate SL
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Type Header, Male Pins, Shrouded (4 Side)
Color Orange
Number of Rows 1
Voltage - Rated 300V
Additional Feature HIGH DENSITY
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.138 3.50mm
Total Number of Contacts 36
Ingress Protection IP10
Insulation Height 0.866 22.00mm
Current Rating 9A
Termination Style Solder
Approval Agency CSA, UR
UL Flammability Code 94V-0
Insulation Resistance 1MOhm
Voltage 300V
Contact Tail Length 0.126 3.20mm
Number of Levels 2
Current 8A
Number of Poles 36
Contact Mating Finish Tin
Voltage - IEC 200V
Positions Per Level 18
Header Orientation 90°, Right Angle
Current - IEC 10.5A
Hole Diameter 1.3 mm
Dimensions
Height 22mm
Length 64.4mm
Width 24.2mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
