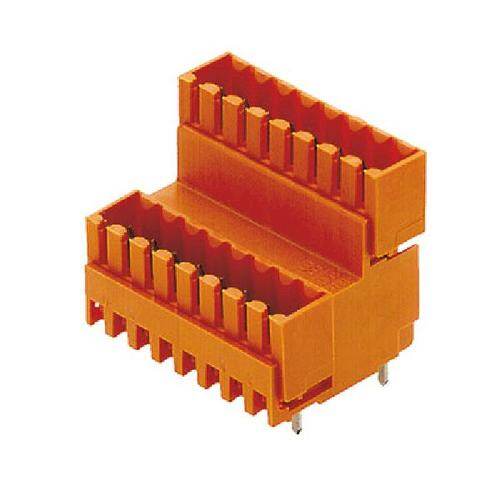

1641220000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 48POS VERT 3.5MM
PDF
/
Inventory: 4788
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Width 22mm
Length 85.4mm
Height 24.2mm
Technical
Hole Diameter 1.3 mm
Current - IEC 10.5A
Header Orientation Vertical
Positions Per Level 24
Voltage - IEC 200V
Contact Mating Finish Tin
Number of Poles 48
Current 8A
Number of Levels 2
Contact Tail Length 0.126 3.20mm
Voltage 300V
Insulation Resistance 1MOhm
UL Flammability Code 94V-0
Approval Agency CSA, UR
Termination Style Solder
Current Rating 9A
Insulation Height 0.953 24.20mm
Ingress Protection IP10
Total Number of Contacts 48
Pitch 0.138 3.50mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Additional Feature HIGH DENSITY
Voltage - Rated 300V
Number of Rows 1
Color Orange
Type Header, Male Pins, Shrouded (4 Side)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series Omnimate SL
Published 2008
Packaging Bulk
Operating Temperature -50°C~100°C
Physical
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 12 Weeks
