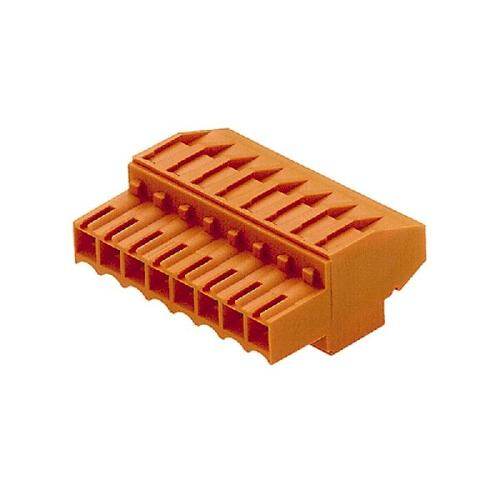

1639880000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK PLUG 20POS 3.5MM
PDF
/
Inventory: 2985
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Mount Free Hanging, Panel
Mounting Type Free Hanging (In-Line)
Housing Material Polybutylene Terephthalate (PBT)
Technical
Operating Temperature -50°C~100°C
Packaging Bulk
Published 2009
Series Omnimate BL
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Termination Screw
Type Plug, Female Sockets
Color Black
Number of Rows 1
Voltage - Rated 300V
Additional Feature HIGH DENSITY
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.138 3.50mm
Orientation Straight
Ingress Protection IP20
Insulation Height 0.888 22.56mm
Current Rating 12A
Termination Style Screw - Clamping Yoke (Tension Sleeve)
Approval Agency CSA
Number of Contacts 20
UL Flammability Code 94V-0
Voltage 300V
Number of Levels 1
Current 8A
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 14 AWG
Contact Mating Finish Tin
Wire Gauge or Range - AWG 14-28 AWG
Voltage - IEC 320V
Torque - Screw 0.2-0.25 Nm (1.7-2.2 Lb-In)
Plug Wire Entry 270°
Wire Gauge or Range - mm2 0.2-1.5mm2
Current - IEC 12A
Screw Size M2
Stripping Length 6mm
Dimensions
Height 22.6mm
Length 70mm
Width 11.6mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
