1639840000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

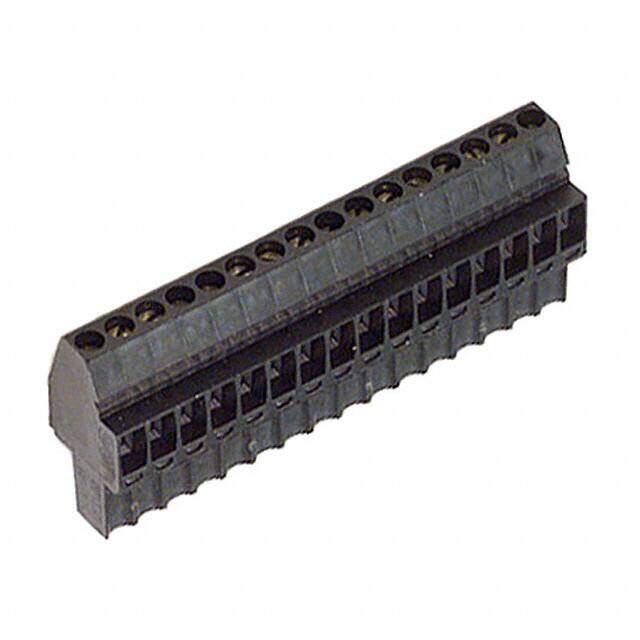

TERM BLOCK PLUG 16POS 3.5MM
PDF
/
Inventory: 2474
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Width 11.6mm
Length 56mm
Height 22.6mm
Technical
Stripping Length 6mm
Screw Size M2
Current - IEC 12A
Wire Gauge or Range - mm2 0.2-1.5mm2
Plug Wire Entry 270°
Torque - Screw 0.2-0.25 Nm (1.7-2.2 Lb-In)
Voltage - IEC 320V
Wire Gauge or Range - AWG 14-28 AWG
Contact Mating Finish Tin
Wire/Cable Gauge 14 AWG
Wire Gauge (Min) 14 AWG
Wire Gauge (Max) 28 AWG
Current 8A
Number of Levels 1
Voltage 300V
UL Flammability Code 94V-0
Number of Contacts 16
Approval Agency CSA
Termination Style Screw - Clamping Yoke (Tension Sleeve)
Current Rating 12A
Insulation Height 0.888 22.56mm
Ingress Protection IP20
Orientation Straight
Pitch 0.138 3.50mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Additional Feature HIGH DENSITY
Voltage - Rated 300V
Number of Rows 1
Color Black
Type Plug, Female Sockets
Connector Type Terminal Block
Termination Screw
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e3
Series Omnimate BL
Published 2009
Packaging Bulk
Operating Temperature -50°C~100°C
Physical
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Free Hanging (In-Line)
Mount Free Hanging, Panel
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 11 Weeks
