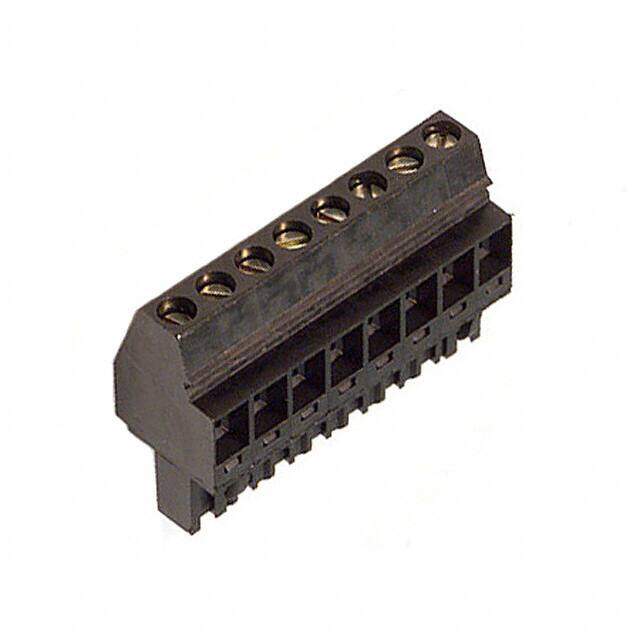

1636950000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK PLUG 8POS 90DEG 5MM
PDF
/
Inventory: 4597
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polybutylene Terephthalate (PBT)
Technical
Operating Temperature -50°C~100°C
Packaging Bulk
Published 2009
Series Omnimate BL
JESD-609 Code e3
Feature Retention Latches (Wire Side)
Pbfree Code yes
Part Status Active
Termination Screw
Type Plug, Female Sockets
Number of Positions 8
Color Black
Number of Rows 1
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.197 5.00mm
Orientation Straight
Ingress Protection IP20
Insulation Height 1.059 26.90mm
Termination Style Screw - Clamping Yoke (Tension Sleeve)
Number of Contacts 8
UL Flammability Code 94V-0
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 12 AWG
Contact Mating Finish Tin
Wire Gauge or Range - AWG 12-26 AWG
Voltage - IEC 400V
Torque - Screw 0.4-0.5 Nm (3.5-4.4 Lb-In)
Plug Wire Entry 90°
Wire Gauge or Range - mm2 0.5-2.5mm2
Wire Strip Length 7mm
Current - IEC 15A
Screw Size M2.5
Dimensions
Height 26.8mm
Length 40mm
Width 14.3mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Contains Lead
