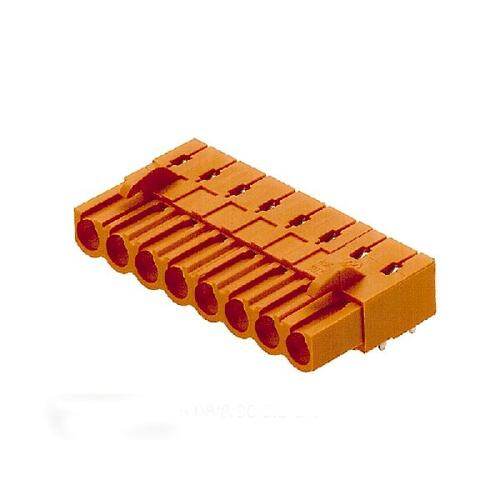

1623040000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
STAGGERED CONFIGURATION Terminal Block Plug
PDF
/
Inventory: 5211
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT), Glass Filled
Technical
Operating Temperature -50°C~100°C
Packaging Bulk
Published 2014
Series Omnimate BL
JESD-609 Code e3
Feature Retention Latches
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Female Sockets
Color Orange
Number of Rows 1
Gender Female
Voltage - Rated 300V
Additional Feature STAGGERED CONFIGURATION
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.200 5.08mm
Total Number of Contacts 12
Insulation Height 0.406 10.31mm
Current Rating 20A
Termination Style Solder
Approval Agency CSA, UR
UL Flammability Code 94V-0
Contact Tail Length 0.126 3.20mm
Number of Levels 1
Number of Poles 12
Contact Mating Finish Tin
Voltage - UL 300V
Current - UL 15A
Voltage - IEC 400V
Header Orientation 90°, Right Angle
Current - IEC 23A
Hole Diameter 1.3 mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
