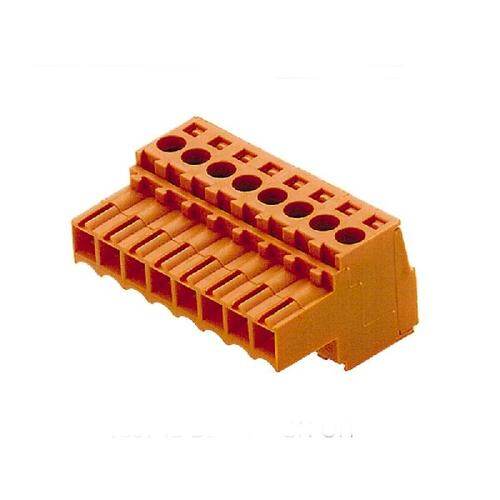

1618640000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
HIGH DENSITY Terminal Block Header
PDF
/
Inventory: 5829
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Technical
Operating Temperature -20°C~100°C
Packaging Bulk
Published 2002
Series Omnimate SL
Pbfree Code yes
Part Status Active
Type Header, Male Pins, Shrouded (4 Side)
Color Black
Number of Rows 1
Additional Feature HIGH DENSITY
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.138 3.50mm
Total Number of Contacts 20
Depth 7.5mm
Insulation Height 0.437 11.10mm
Termination Style Solder
UL Flammability Code 94V-0
Insulation Resistance 1MOhm
Voltage 300V
Contact Tail Length 0.177 4.50mm
Max Current Rating 10A
Number of Levels 1
Current 10A
Contact Mating Finish Tin
Voltage - UL 300V
Voltage - IEC 125V
Header Orientation Vertical
Current - IEC 12A
Number of Positions Per Level 20
Dimensions
Length 71.4mm
Width 7.5mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
