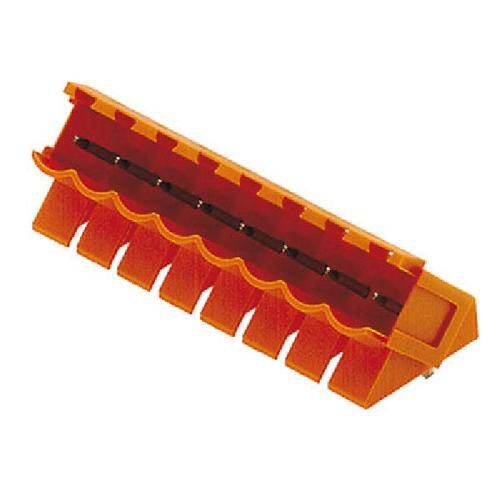

1606010000 image
Favorite
1606010000 image
Favorite

1606010000

Weidmüller
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Conn Wire to Board HDR 4 POS 5.08mm Solder Thru-Hole
PDF
/
Inventory: 6887
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0

Dimensions

Width 13.2mm

Technical

Number of Positions Per Level 4
Current - IEC 12A
Header Orientation 135°
Voltage - IEC 250V
Voltage - UL 300V
Contact Mating Finish Tin
Current 15A
Number of Levels 1
Max Current Rating 15A
Contact Tail Length 0.177 4.50mm
Voltage 300V
Insulation Resistance 1MOhm
Termination Style Solder
Insulation Height 0.512 13.00mm
Depth 13.2mm
Total Number of Contacts 4
Pitch 0.200 5.08mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Number of Rows 1
Color Orange
Type Header, Male Pins, Shrouded (4 Side)
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Series Omnimate SL
Published 2002
Packaging Bulk
Operating Temperature -20°C~100°C

Physical

Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 16 Weeks
