1605590000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

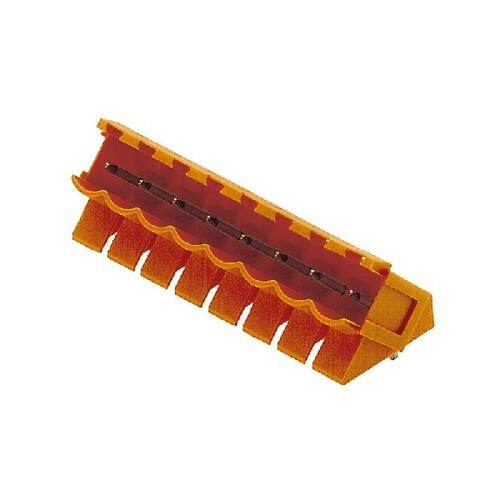

Terminal Block Plug
PDF
/
Inventory: 5380
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Technical
Hole Diameter 1.3 mm
Header Orientation 135°
Voltage - IEC 400V
Current - UL 15A
Voltage - UL 300V
Contact Mating Finish Tin
Number of Poles 8
Number of Levels 1
Contact Tail Length 0.126 3.20mm
UL Flammability Code 94V-0
Approval Agency CSA, UR
Termination Style Solder
Current Rating 17A
Insulation Height 0.484 12.30mm
Total Number of Contacts 8
Pitch 0.200 5.08mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Voltage - Rated 300V
Gender Male
Number of Rows 1
Color Orange
Type Header, Male Pins, Shrouded (4 Side)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series Omnimate SL
Published 2004
Packaging Bulk
Operating Temperature -50°C~100°C
Physical
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 14 Weeks
