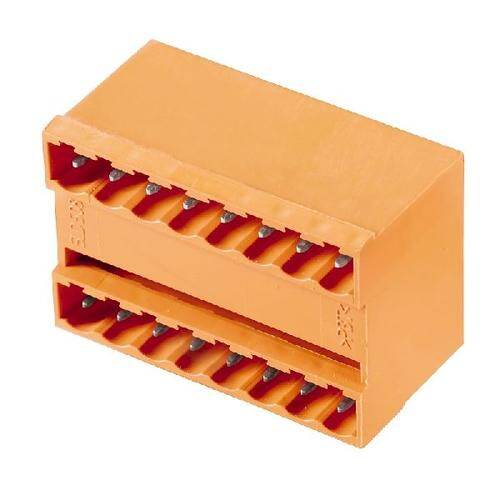

1601960000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Terminal Block Header
PDF
/
Inventory: 9644
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Technical
Operating Temperature -50°C~100°C
Packaging Bulk
Series Omnimate SL
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Male Pins, Shrouded (4 Side)
Color Orange
Number of Rows 2
Gender Male
Voltage - Rated 300V
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.200 5.08mm
Total Number of Contacts 38
Insulation Height 1.104 28.04mm
Current Rating 9.5A
Termination Style Solder
Approval Agency CSA, UR
UL Flammability Code 94V-0
Contact Tail Length 0.126 3.20mm
Number of Levels 2
Number of Poles 38
Contact Mating Finish Tin
Voltage - UL 300V
Current - UL 10A
Voltage - IEC 400V
Positions Per Level 19
Header Orientation 90°, Right Angle
Current - IEC 11A
Hole Diameter 1.3 mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
