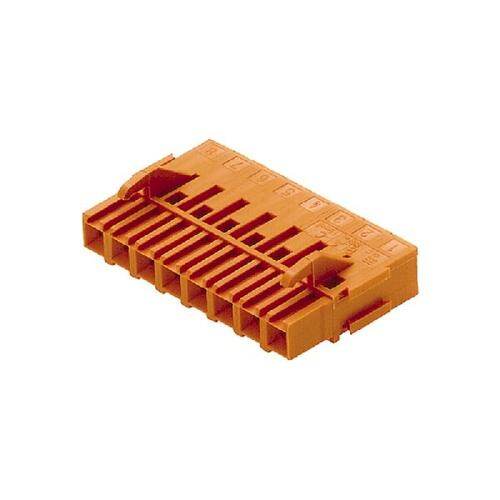

1578230000 image
Favorite
1578230000 image
Favorite

1578230000

Weidmüller
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Terminal Block Socket
PDF
/
Inventory: 2133
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0

Technical

Current - IEC 20A
Wire Gauge or Range - mm2 0.22-2.5mm2
Plug Wire Entry 180°
Voltage - IEC 500V
Current - UL 10A
Wire Gauge or Range - AWG 14-26 AWG
Voltage - UL 300V
Contact Finish Termination Tin (Sn)
Number of Levels 1
UL Flammability Code 94V-0
Mating Information MULTIPLE MATING PARTS AVAILABLE
Termination Style Crimp
Insulation Height 0.398 10.11mm
Total Number of Contacts 2
Pitch 0.200 5.08mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating TIN
Gender Female
Number of Rows 2
Color Orange
Number of Positions 2
Type Plug Housing for Female Sockets
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Retention Latches (Non-Wire Side)
JESD-609 Code e3
Series Unimate BLA
Packaging Bulk
Operating Temperature -50°C~120°C

Physical

Housing Material Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type Free Hanging (In-Line)
Contact Material COPPER ALLOY

Supply Chain

Factory Lead Time 12 Weeks
