1571230000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

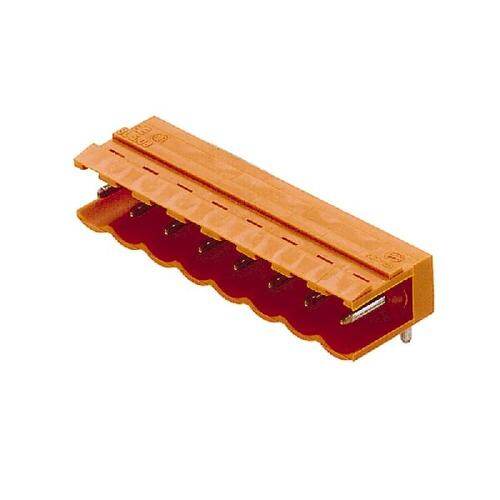

TERM BLOCK HDR 13POS 90DEG 5MM
PDF
/
Inventory: 5077
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Width 12mm
Length 65mm
Height 8.4mm
Technical
Hole Diameter 1.3 mm
Current - IEC 18A
Header Orientation 90°, Right Angle
Voltage - IEC 400V
Contact Mating Finish Tin
Number of Poles 13
Current 10A
Number of Levels 1
Contact Tail Length 0.126 3.20mm
Voltage 300V
Insulation Resistance 1MOhm
UL Flammability Code 94V-0
Approval Agency CSA, UR
Termination Style Solder
Current Rating 15A
Insulation Height 0.330 8.38mm
Ingress Protection IP20
Total Number of Contacts 13
Pitch 0.197 5.00mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Voltage - Rated 300V
Number of Rows 1
Color Orange
Type Header, Male Pins, Shrouded (2 Side)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series Omnimate SL
Published 2004
Packaging Bulk
Operating Temperature -50°C~100°C
Physical
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 16 Weeks
