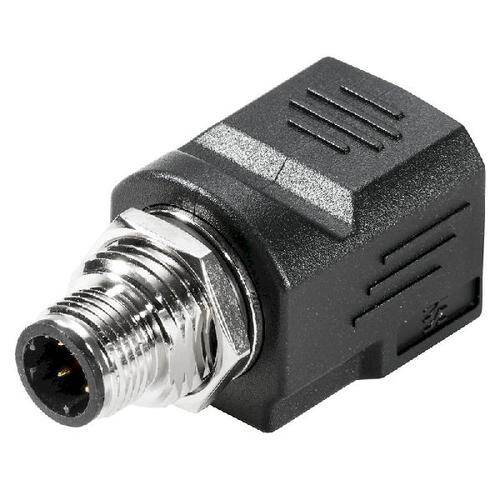

1515610000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK HDR 9POS 90DEG 5.08MM
PDF
/
Inventory: 4356
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Technical
Operating Temperature -20°C~100°C
Packaging Bulk
Published 2002
Series Omnimate SL
Pbfree Code yes
Part Status Obsolete
Connector Type PCB, Terminal Block
Type Header, Male Pins, Shrouded (4 Side)
Color Black
Number of Rows 1
Gender Male
Voltage - Rated 300V
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.200 5.08mm
Total Number of Contacts 9
Insulation Height 0.335 8.51mm
Current Rating 15A
Termination Style Solder
Insulation Resistance 1MOhm
Voltage 300V
Contact Tail Length 0.177 4.50mm
Number of Levels 1
Current 15A
Contact Mating Finish Tin
Voltage - IEC 250V
Header Orientation 90°, Right Angle
Current - IEC 12A
Number of Positions Per Level 9
Dimensions
Height 8.5mm
Width 12mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
