1510650000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

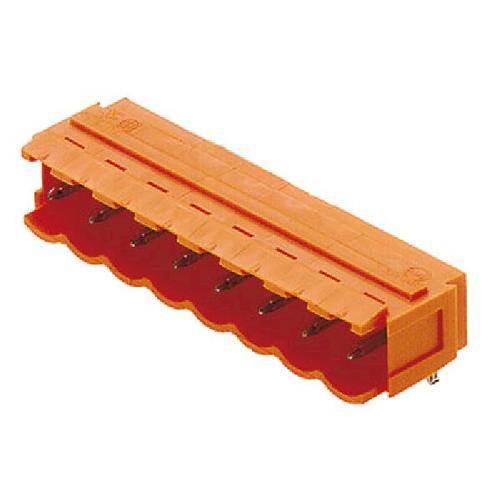

Terminal Block Plug
PDF
/
Inventory: 2576
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)
Technical
Operating Temperature -50°C~100°C
Packaging Bulk
Series Omnimate SL
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 5
Color Green
Pitch 0.200 5.08mm
Ingress Protection IP20
Insulation Height 0.330 8.38mm
Termination Style Solder
Contact Tail Length 0.126 3.20mm
Number of Levels 1
Contact Mating Finish Tin
Voltage - UL 300V
Current - UL 15A
Voltage - IEC 400V
Header Orientation 90°, Right Angle
Current - IEC 18A
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
