1510610000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

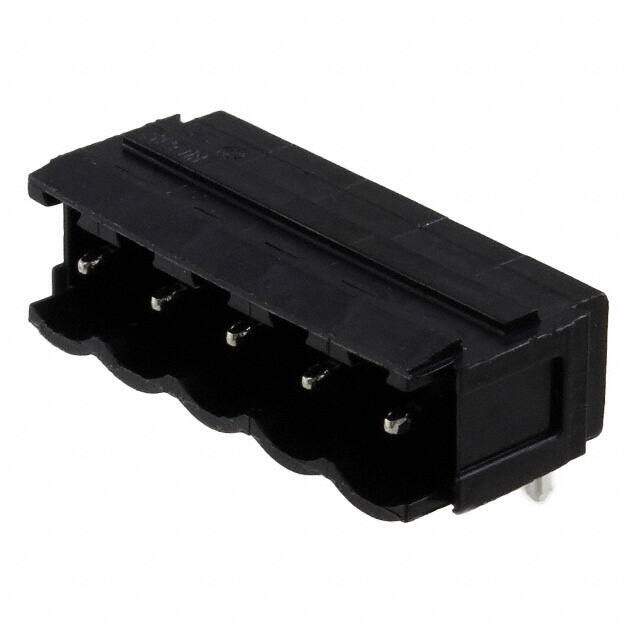

TERM BLOCK HDR 5POS 90DEG 5.08MM
PDF
/
Inventory: 5644
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Fastening Method CONNECTOR
Current - IEC 18A
Header Orientation 90°, Right Angle
Safety Approval CSA; EAC; UL
Number of Ways 5
Voltage - IEC 400V
Number of Decks 1
Voltage - UL 300V
Contact Mating Finish Tin
Current 15A
Number of Levels 1
Contact Tail Length 0.126 3.20mm
Voltage 300V
Termination Style Solder
Insulation Height 0.330 8.38mm
Ingress Protection IP20
Pitch 0.200 5.08mm
Additional Feature STANDARD: UL 94V-0, PBT
Number of Rows 1
Color Black
Number of Positions 5
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series Omnimate SL
Published 2013
Packaging Bulk
Operating Temperature -50°C~100°C
Physical
Housing Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 14 Weeks
