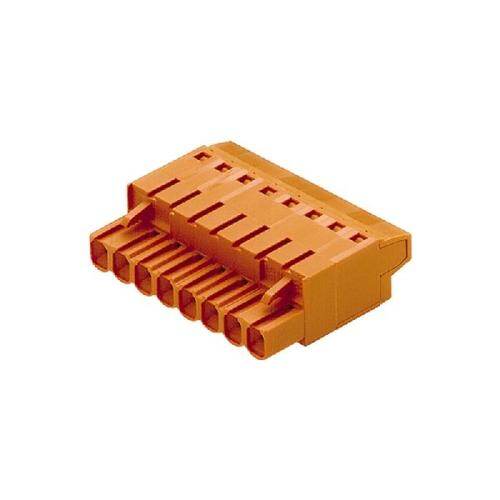

1500860000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
TERM BLOCK PLUG 15POS STR 5.08MM
PDF
/
Inventory: 4975
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Width 31.1mm
Length 76.2mm
Height 12.2mm
Technical
Stripping Length 13mm
Screw Size M2.5
Current - IEC 27A
Wire Gauge or Range - mm2 0.2-2.5mm2
Plug Wire Entry 180°
Torque - Screw 0.4-0.5 Nm (3.5-4.4 Lb-In)
Voltage - IEC 400V
Current - UL 17A
Wire Gauge or Range - AWG 14-26 AWG
Contact Mating Finish Tin
Wire Gauge (Min) 14 AWG
Wire Gauge (Max) 26 AWG
Current 10A
Number of Levels 1
Voltage 300V
UL Flammability Code 94V-0
Number of Contacts 15
Approval Agency CSA, UR
Termination Style Screw - TOP Clamp
Current Rating 10A
Insulation Height 0.480 12.20mm
Orientation Straight
Pitch 0.200 5.08mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Voltage - Rated 300V
Number of Rows 1
Color Orange
Type Plug, Female Sockets
Termination Screw
Part Status Active
Pbfree Code yes
Feature Retention Latches (Non-Wire Side)
JESD-609 Code e3
Series Omnimate BL
Published 2008
Packaging Bulk
Operating Temperature -50°C~100°C
Physical
Housing Material Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 12 Weeks
