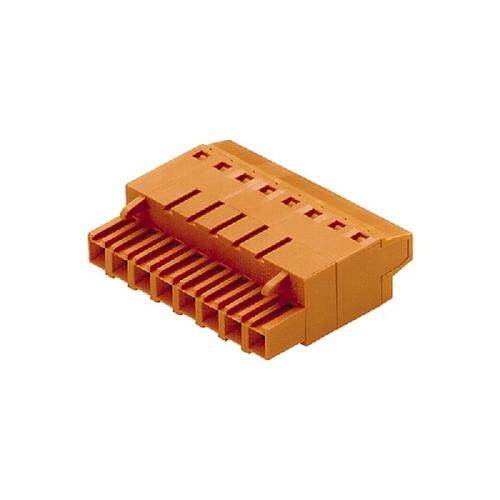

1485260000 image
Favorite
1485260000 image
Favorite

1485260000

Weidmüller
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description Terminal Block Plug
PDF
/
Buying Options
Total Price: USD $47.57
Unit Price: USD $47.571619
≥1 USD $47.571619
≥210 USD $18.981908
≥510 USD $18.347778
≥990 USD $18.033994
Inventory: 1179
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 12 Weeks

Physical

Contact Material Copper Alloy
Mount Cable
Mounting Type Free Hanging (In-Line)
Housing Material Polybutylene Terephthalate (PBT), Glass Filled

Technical

Operating Temperature -50°C~120°C
Packaging Bulk
Published 2008
Series Unimate BLA
JESD-609 Code e3
Feature Retention Latches (Non-Wire Side)
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Type Plug, Female Sockets
Color Orange
Number of Rows 2
Gender Female
HTS Code 8536.69.40.40
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.200 5.08mm
Orientation Straight
Insulation Height 0.480 12.20mm
Termination Style Screw - TOP Clamp
Number of Contacts 12
UL Flammability Code 94V-0
Number of Levels 1
Contact Mating Finish Tin
Voltage - UL 300V
Wire Gauge or Range - AWG 14-26 AWG
Current - UL 10A
Voltage - IEC 400V
Torque - Screw 0.4-0.5 Nm (3.5-4.4 Lb-In)
Plug Wire Entry 180°
Wire Gauge or Range - mm2 0.2-2.5mm2
Wire Strip Length 13mm
Current - IEC 15A
Screw Size M2.5

Compliance

Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
