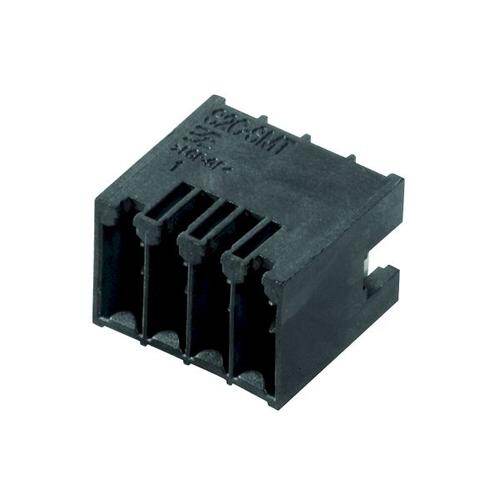

1359460000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Terminal Block Socket
PDF
/
Inventory: 9300
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP), Glass Filled
Technical
Operating Temperature -50°C~120°C
Packaging Tape & Reel (TR)
Series Omnimate S2C
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 4
Color Black
Number of Rows 1
Voltage - Rated 150V
Pitch 0.138 3.50mm
Ingress Protection IP20
Insulation Height 0.425 10.80mm
Current Rating 10A
Termination Style Solder
Contact Tail Length 0.126 3.20mm
Contact Mating Finish Tin
Voltage - IEC 200V
Positions Per Level 2
Header Orientation 90°, Right Angle
Current - IEC 13.4A
Hole Diameter 1.3 mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
