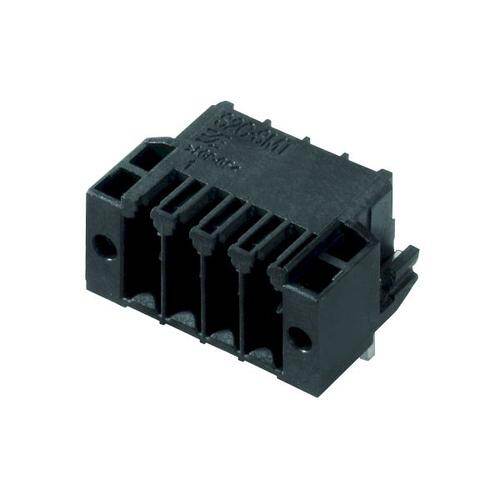

1358950000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
STANDARD: UL 94V-0GLASS FILLED LCP Terminal Block Socket
PDF
/
Inventory: 8692
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP), Glass Filled
Technical
Operating Temperature -50°C~120°C
Packaging Tape & Reel (TR)
Series Omnimate S2C
Feature Mating Flange, Solder Retention
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 10
Color Black
Number of Rows 1
Voltage - Rated 150V
Additional Feature STANDARD: UL 94V-0, GLASS FILLED LCP
Pitch 0.138 3.50mm
Ingress Protection IP20
Insulation Height 0.425 10.80mm
Current Rating 10A
Termination Style Solder
Contact Tail Length 0.126 3.20mm
Number of Levels 2
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 200V
Positions Per Level 5
Number of Ways 10
Safety Approval CSA; CUL; EAC; IEC; UL
Header Orientation 90°, Right Angle
Current - IEC 13.4A
Hole Diameter 1.3 mm
Fastening Method CONNECTOR
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
