1357790000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

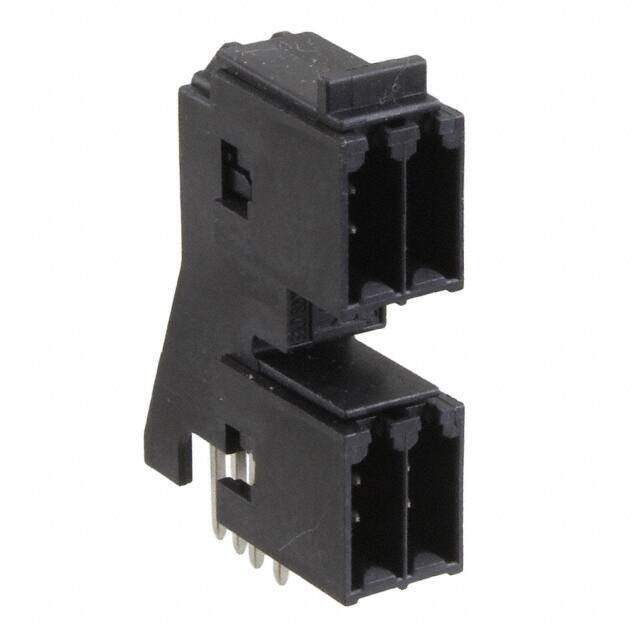

TERM BLOCK HDR 8POS 90DEG 3.5MM
PDF
/
Inventory: 910
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Through Hole
Housing Material Liquid Crystal Polymer (LCP), Glass Filled
Technical
Operating Temperature -50°C~120°C
Packaging Bulk
Published 2012
Series Omnimate S2C
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Header, Male Pins, Shrouded (4 Side), Stacked
Number of Positions 8
Color Black
Voltage - Rated 150V
Pitch 0.138 3.50mm
Ingress Protection IP20
Insulation Height 1.252 31.80mm
Current Rating 7.9A
Termination Style Solder
Contact Tail Length 0.126 3.20mm
Number of Levels 2, 2
Contact Mating Finish Tin
Current - UL 9.5A
Voltage - IEC 200V
Positions Per Level 4, 4
Header Orientation 90°, Right Angle
Hole Diameter 1.3 mm
Number of Positions Per Level 4
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
